| Brand Name : | SL |
| Supply Ability : | 10 Set/Sets per Month |
| Price : | $55,000.00/sets 1-2 sets |

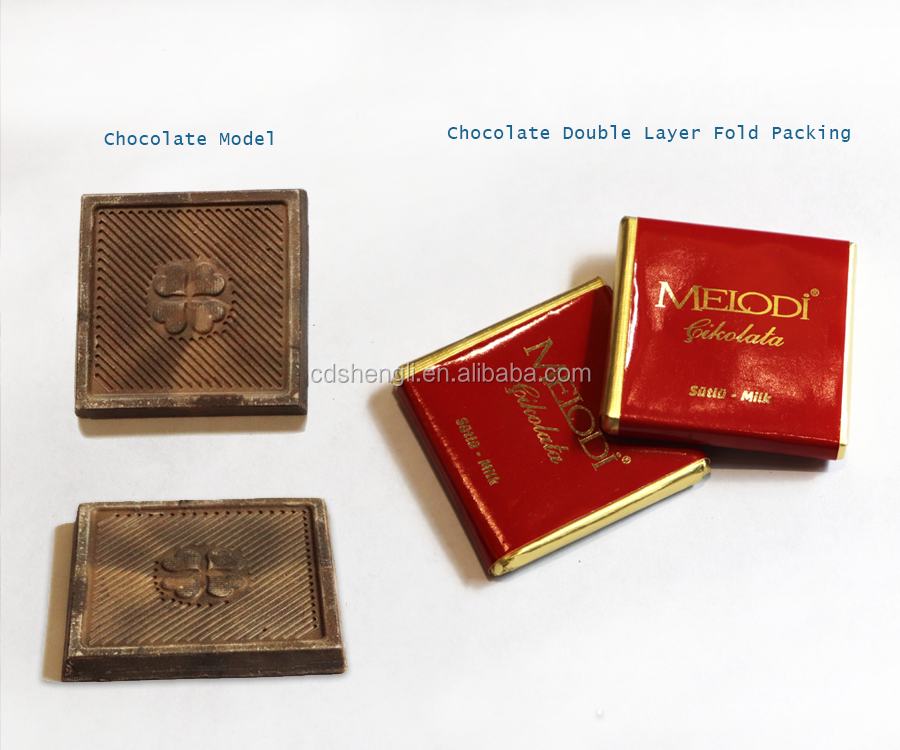

SL-SBZB450D series automatic wrapping machines are mainly used for

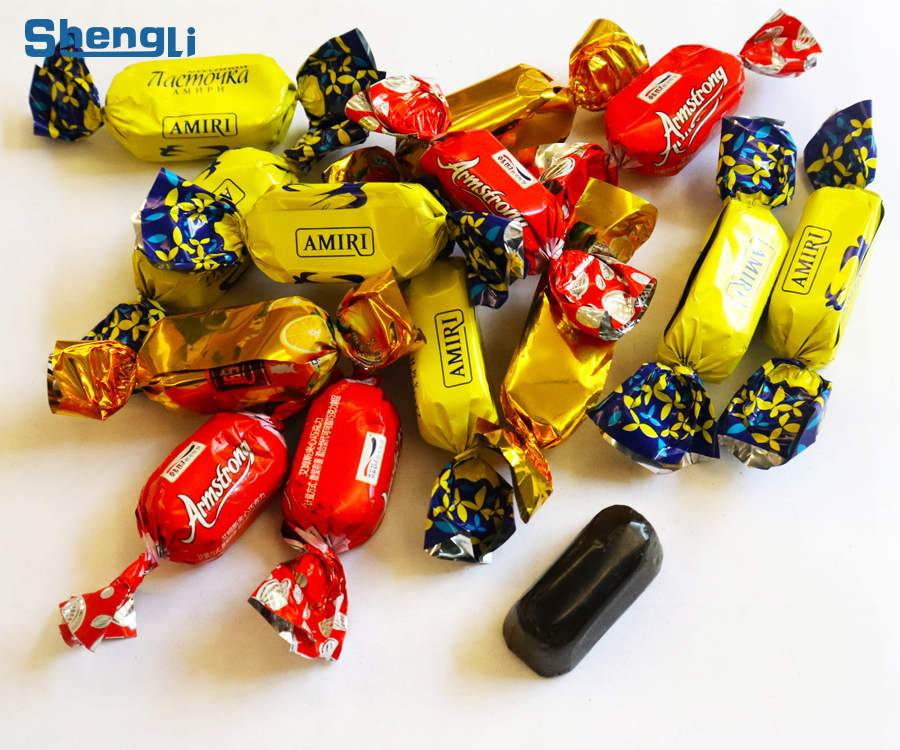

the folding and enveloping style wrapping for chocolate/ biscuit/hard candy/ pressed candy etc, a variety of sizes and shapes. The model is compatible with
various types of wrapping materials. Meanwhile, which adds
additional label wrapping and double layers wrapping function,
providing more variety and flexibility in wrapping style.
At the same time, this wrapping machine is equipped with a set of
automatic conveyors for conveying and sorting materials.
SPECIFICATIONS FOR FOLD WRAPPING MACHINE | ||||||
Main Wrapping Machine | Packing Speed | 200-260 PPM | ||||
Chocolate Size | Length*Width*Thickness: 10-80*4-45*4-35 MM | |||||
Qualification rate of packaging | >=98% | |||||
Conveyor Machine | Total Power | 2 KW | ||||
Compressed Air | 0.6 Mpa | |||||
Frequency Converter | Taiwan (Delta) | |||||
Payment Method | Pay in advance30%,Payment before delivery70% | |||||
The Period For dispatch | 60 days after receipt of deposit | |||||
Name: Robatech Gluing
Brand: Robatech
Original: Swiss
Cold seal, gluing.
Name: Photoelectric Eye
Brand: SICK
Original: Germany Detect material and send signals to the PLC control
system. When the material stops conveying, the packaging machine
will automatically slow down or stop the line.
Name: Color Code Sensor
Brand: SICK
Original: Germany
Detect the color code on the wrapping paper, send signals, and
control the size of the wrapping paper.
Name: Glue Applicator
Brand: Robatech
Original: Germany
Spray food grade glue onto the wrapper for sealing.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 2960 (L) * 1560 (W) * 2150(D) MM | |
Weight | 1.6 T | |

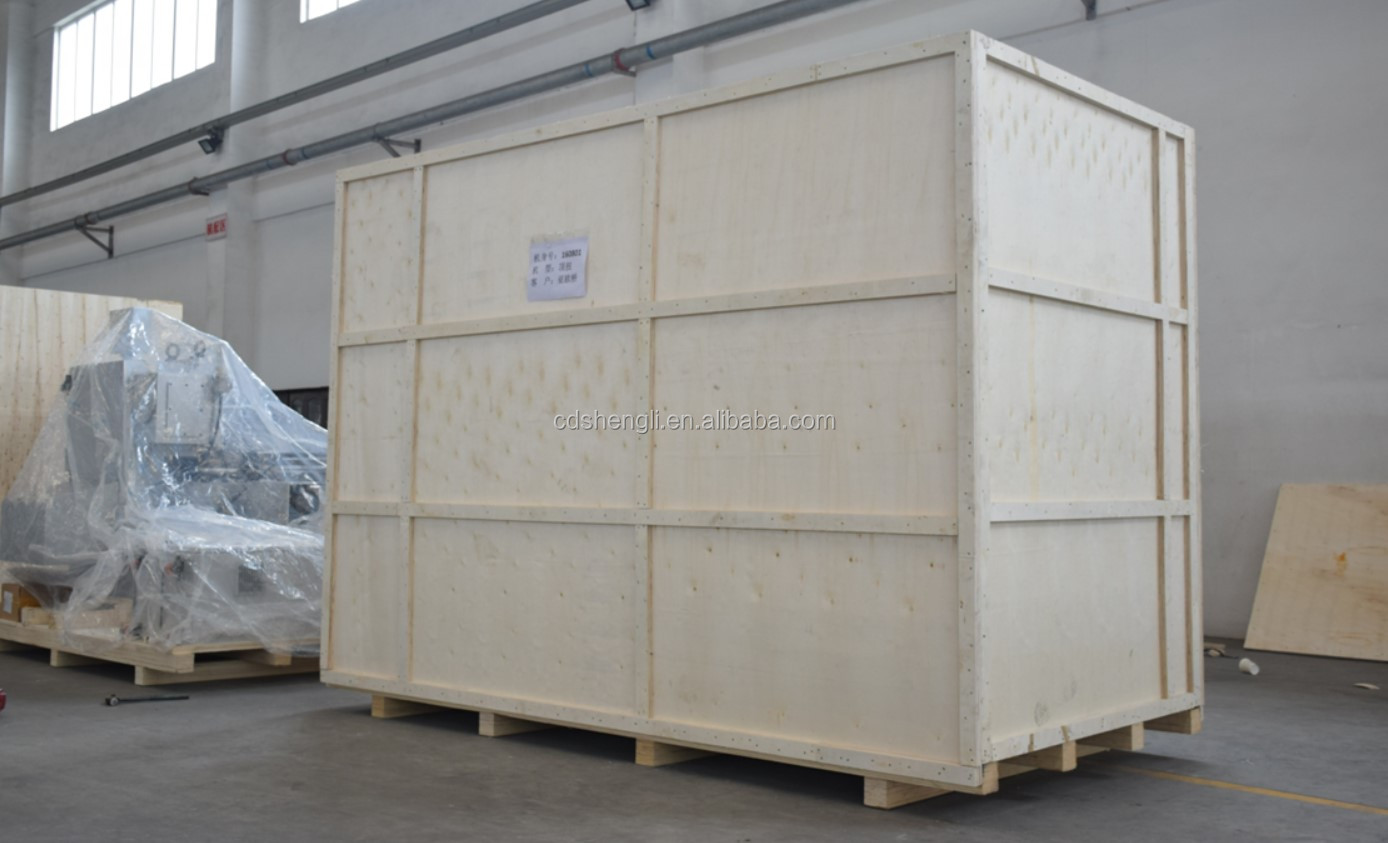

Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
Packaging | ||
Size | 2360 (L) * 860 (W) * 1250 (D) MM 1560 (L) * 860 (W) * 1260 (D) MM | |
Weight | 1 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request. | |
|
|
